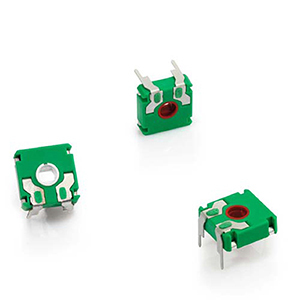

14mm rotary position sensor with 360° mechanical rotation angle (Electrical 330°) and up to 1.000.000 cycles of mechanical life.
The CS14 can be manufactured in a wide range of possibilities regarding:
– resistance value, tolerance and tapers,
– click effect (up to 50 detents), featuring ACP patented detent mechanism,
– positioning of the wiper, housing and rotor color.
Standard taper is linear, featuring upon request absolute linearity up to 2%. ACP can study other special tapers (even cut tracks, step curves with areas of constant value, etc)
Through-hole configuration is available; for SMD version, please, enquire. Terminals for through-hole models can be provided straight or crimped, which helps hold the component to the PCB during soldering.
